Gate Valve > API 603 STAINLESS STEEL

GTF-150

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : -
CONNECTION : Flanged End

Design Feature :

1. API603 GTF-150
2. FLEXIBLE WEDGE
3. OUTSIDE SCREW AND YORK
4. RISING STEM DESIGN
5. NON-RISING HANDWHEEL
6. 8"+ WITH BALL BEARING FOR EASY OPERATION
6. SEAT FACE STELLITED

GTF-300

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : -
CONNECTION : Flanged End

Design Feature :

1. API603 GTF-300
2. FLEXIBLE WEDGE
3. OUTSIDE SCREW AND YORK
4. RISING STEM DESIGN
5. NON-RISING HANDWHEEL
6. 8"+ WITH BALL BEARING FOR EASY OPERATION
6. SEAT FACE STELLITED

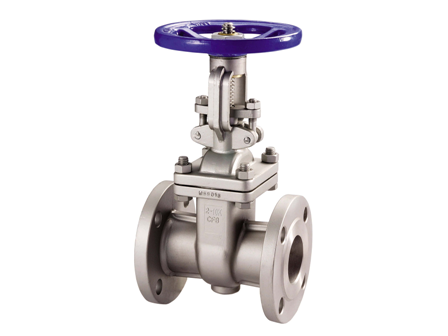

GTF-JIS10K

Full BoreJIS 10K

1/2" ~24"   DN15~DN600

MoreLiterature

BODY : SCS14
SEAT : -
CONNECTION : Flanged End

Design Feature :

1. API603 GTF-JIS10K
2. FLEXIBLE WEDGE
3. OUTSIDE SCREW AND YORK
4. RISING STEM DESIGN
5. NON-RISING HANDWHEEL
6. 8"+ WITH BALL BEARING FOR EASY OPERATION
6. SEAT FACE STELLITED

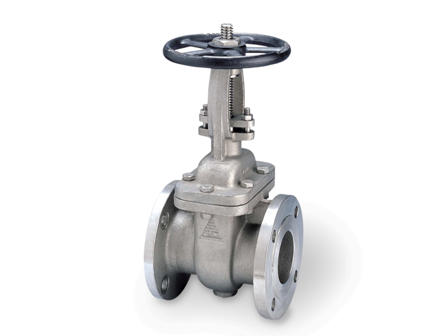

GTF-PN16

Full BorePN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : -
CONNECTION : Flanged End

Design Feature :

1. API603 GTF-PN16
2. FLEXIBLE WEDGE
3. OUTSIDE SCREW AND YORK
4. RISING STEM DESIGN
5. NON-RISING HANDWHEEL
6. 8"+ WITH BALL BEARING FOR EASY OPERATION
6. SEAT FACE STELLITED
