Check Valve > API 603 STAINLESS STEEL
SF-150
Full BoreCLASS 150
1/2" ~12" DN15~DN300
BODY : ASTM A351 Gr.CF8M
SEAT : -
CONNECTION : Flanged End
Design Feature :
1. API603 SF-150
2. SWING TYPE DESIGN
3. BOLTED BONNET
4. FULL ENCLOSED GASKET
5. SEAT FACE STELLITED
6. ONE-PIECE CONSTRUCTION DISC

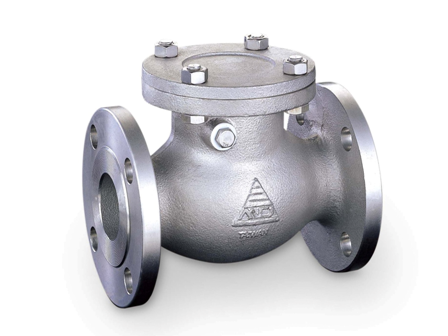

SF-300
Full BoreCLASS 300
1/2" ~10" DN15~DN250
BODY : ASTM A351 Gr.CF8M
SEAT : -
CONNECTION : Flanged End
Design Feature :
1. API603 SF-300
2. SWING TYPE DESIGN
3. BOLTED BONNET
4. FULL ENCLOSED GASKET
5. SEAT FACE STELLITED
6. ONE-PIECE CONSTRUCTION DISC
SF-JIS10K
Full BoreJIS 10K
1/2" ~24" DN15~DN600
BODY : SCS14A
SEAT : -
CONNECTION : Flanged End
Design Feature :
1. API603 SF-JIS10K
2. SWING TYPE DESIGN
2. BOLTED COVER
3. INTEGRAL SEAT
4. FOR HORIZONTAL OR VERTICAL LINE
SF-PN16
Full BorePN 16
1/2" ~10" DN15~DN250
BODY : ASTM A351 Gr.CF8M
SEAT : -
CONNECTION : Flanged End
Design Feature :
1. API603 SF-PN16
2. SWING TYPE DESIGN
3. BOLTED BONNET
4. FULL ENCLOSED GASKET
5. SEAT FACE STELLITED
6. ONE-PIECE CONSTRUCTION DISC
