Model Name

Ball Valve

K-318

Standard BorePN 63

1/4" ~2"    DN8~DN50

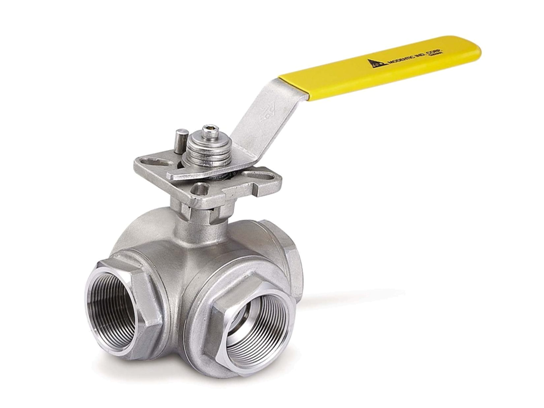

 Product Picture


 Features

General Purpose Three Ways Ball Valves

1. INVESTMENT CAST COMPONENT
2. THREADED END
3. L / T PORT
4. BLOW-OUT-PROOF STEM
5. 360 DEGREE ROTATION DESIGN
6. FOUR SEATS & SCREWED BODY DESIGN
7. ISO 5211 DIRECT MOUNTING PAD



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
THREADED END
END CONNECTION STANDARD
ANSI B1.20.1( NPT ) / DIN 259 /
DIN 2999 / ISO 228 / BSP / PT
　
ISO 5211 DIRECT MOUNTING PAD
ISO 5211 integral mounting pad allows for direct actuator mounting. The mounting flange always follow ISO 5211 standard design and could be perfectly match with most actuators in the worldwide. Stable torque of valve always lead to the effective cost saving.
　
K-318
STANDARD COMPLIANCE
• EN 12516 1/3, BS21 (BSP)
• BSPT, ISO 228-1G
• DIN2999, ISO 7-1Rp


TEMPERATURE RANGE
• -4 to 356 °F
• -20 to 180 °C


OPTION
• Carbon Steel & Super Alloy upon request
　
Threaded End
END CONNECTION STANDARD
ANSI B1.20.1( NPT ) / DIN 259 /
DIN 2999 / ISO 228 / BSP / PT
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
