Model Name

Ball Valve

V-155AB

Reduced BorePN140 / PN100

1/2" ~4"    DN15~DN100

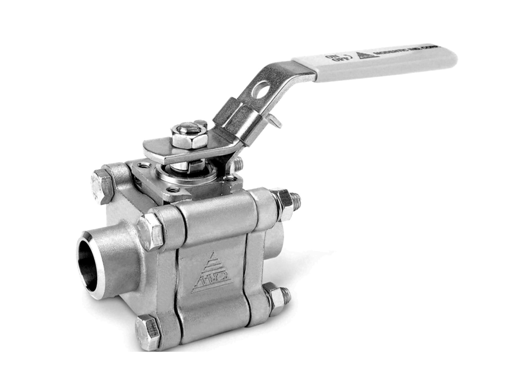

 Product Picture


 Features

General Purpose Three Pieces Ball Valves

1. INVESTMENT CAST COMPONENT
2. BUTT WELD END
3. ANTI-STATIC DEVICE
4. BLOW-OUT-PROOF STEM



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
BUTT WELD END
END CONNECTION STANDARD
ANSI B16.25

VALVES LENGTH STANDARD
Manufacturing Standard /
ANSI B16.10 / DIN 3202 S13
　
V-155AB
STANDARD COMPLIANCE
• EN 12516 1/2/3, B16.25
• EN1503-1, EN12266


TEMPERATURE RANGE
• -4 to 356 °F
• -20 to 180 °C

OPTION
• Fire Safe Design
• Carbon Steel & Super Alloy upon request
　
Butt Weld End
END CONNECTION STANDARD
ANSI B16.25

VALVES LENGTH STANDARD
Manufacturing Standard /
ANSI B16.10 / DIN 3202 S13
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
