Model Name

Ball Valve

V-105T

Full BorePN 63 / PN 40

1/4" ~4"    DN8~DN100

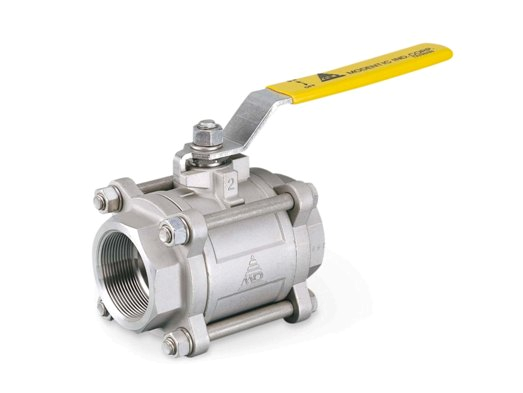

 Product Picture


 Features

General Purpose Three Pieces Ball Valves

1. THREE PIECES BODY DESIGN
2.THREADED END
3. INVESTMENT CAST COMPONENT
4. BLOW-OUT-PROOF STEM



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
THREADED END
END CONNECTION STANDARD
ANSI B1.20.1( NPT ) / DIN 259 /
DIN 2999 / ISO 228 / BSP / PT
　
V-105T
STANDARD COMPLIANCE
• EN 12516 1/2/3, EN 12266
• BS 21(BSP), BSPT
• ISO 228-1G, ISO 7-1Rp, DIN 2999

TEMPERATURE RANGE
• -4 to 356 °F
• -20 to 180 °C


OPTION
• Face to Face Length : DIN 3203 M3
• Carbon Steel & Super Alloy upon request.
• Locking Device Handle
　
Threaded End
END CONNECTION STANDARD
ANSI B1.20.1( NPT ) / DIN 259 /
DIN 2999 / ISO 228 / BSP / PT
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
