Model
Name
Ball Valve
MD-928EB(ISO)
Tube Bore1000 PSI / 720 PSI
1/2" ~4" DN15~DN100

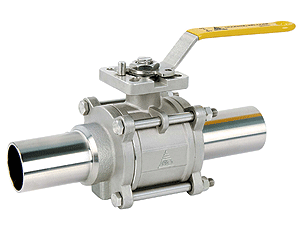

Product Picture
FeaturesThree Pieces High Purity Ball Valves |
|---|
1. ISO DIMENSIONS |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | MD-928EB(ISO) |
| PRODUCT TYPE | Three Pieces High Purity Ball Valves |
| OPERATION | Handle |
| PRESSURE | 1000 PSI / 720 PSI |
| CONNECTION | Tube End |
| PORT | Tube Bore |
| MOUNTING Mounting Flange | ISO 5211 Direct Mounting Flange |
| BODY Material | ASTM A351 Gr.CF3M |
| CAP / BONNET Material | ASTM A351 Gr.CF3M |
| STEM Material | SS316 |
| BALL Material | ASTM A351 Gr.CF3M |
| SEAT Material | TFM1600 |
| CHOICE OF SEATS Material | PTFE RTFE (PTFE with 15% G.F.) Carbon filled PTFE Carbon filled PEEK PEEK PCTFE PTFE with 50% SS316 TFM |
| BODY SEAL Material | - |
| THRUST WASHER Material | TFM1600 |
| STEM PACKING Material | TFM1600 |
| ISO 5211 DIRECT MOUNTING PAD |
| ISO 5211 integral mounting pad allows for direct actuator mounting. The mounting flange always follow ISO 5211 standard design and could be perfectly match with most actuators in the worldwide. Stable torque of valve always lead to the effective cost saving. |
| MD-928EB(ISO) |
| TEMPERATURE RANGE • -70 to 475° F • -57 to 246°C PRESSURE RATING • 1000 PSI / PN63 for 1/2"~2" • 720 PSI / PN40 for 2-1/2"~4" CF3M MATERIAL CF3M with Ferrite content less than 3% ; Sulfur contant 0.005~0.017% upon request. INTERIOR FINISH • Electro-Polishing : SFV4 Ra 10 u-in (0.25um) • Mechanical Polishing : SFV1 Ra 15u-in (0.375um) |
| Tube End |
| • ASME BPE compliant extended tube so that welding can be performed without valve disassembled, tangent lengths furnished to standard ASME/BPE table DT-4.0 • Sulfur content on tube ends 0.005%~0.017 wt. % to ensure consistent weldability. Chemical composition for automatic weld end furnished to ASME/BPE-part DT-3. |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN15 | 132.8 | 69.75 | 126 | 0.80 |
| DN20 | 132.8 | 76.45 | 137.4 | 1.00 |
| DN25 | 171.8 | 84.85 | 149.7 | 1.40 |
| DN32 | 171.8 | 89.85 | 162.6 | - |
| DN40 | 204.2 | 101.45 | 169.2 | 3.20 |
| DN50 | 202 | 126.7 | 180.6 | 4.60 |
| DN65 | 365.5 | 149.95 | 229.2 | 9.50 |
| DN80 | 365.5 | 158.45 | 237.2 | 13.50 |
| DN100 | 401 | 200.5 | 265.9 | 23.70 |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1/2" | 5.2 | 2.7 | 5.0 | 1.8 |
| 3/4" | 5.2 | 3.0 | 5.4 | 2.2 |
| 1" | 6.8 | 3.3 | 5.9 | 3.1 |
| 1-1/4" | 6.8 | 3.5 | 6.4 | - |
| 1-1/2" | 8.0 | 4.0 | 6.7 | 7.1 |
| 2" | 8.0 | 5.0 | 7.1 | 10.2 |
| 2-1/2" | 14.4 | 5.9 | 9.0 | 21.0 |
| 3" | 14.4 | 6.2 | 9.3 | 29.8 |
| 4" | 15.8 | 7.9 | 10.5 | 52.3 |
