Model Name

Ball Valve

MD-928TC

Tube Bore1000 PSI / 720 PSI

1/2" ~4"    DN15~DN100

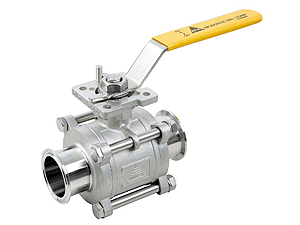

 Product Picture


 Features

Three Pieces High Purity Ball Valves

1. T-CLAMP END
2. CAVITY FILLED SEAT UPON REQUEST
3. ISO 5211 DIRECT MOUNTING PAD
4. DESIGN PER ANSI B16.34 / BPE
5. BLOW-OUT PROOF STEM
6. OPTION：CAVITY SEAT, EXTENDED STEM, POURGE PORT



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
T-CLAMP END
Hygienic Clamp End in accordance with US dimensions.
　
ISO 5211 DIRECT MOUNTING PAD
ISO 5211 integral mounting pad allows for direct actuator mounting. The mounting flange always follow ISO 5211 standard design and could be perfectly match with most actuators in the worldwide. Stable torque of valve always lead to the effective cost saving.
　
MD-928TC
TEMPERATURE RANGE
• -70 to 356° F
• -57 to 180°C


PRESSURE RATING
1000 PSI / PN63 for 1/2"~2"
720 PSI / PN40 for 2-1/2"~4"


CF3M MATERIAL
CF3M with Ferrite content less than 3% ; Sulfur contant 0.005~0.017% upon request.
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
