Model Name

Ball Valve

VF-27

15° V PortPN 16

1/2" ~6"    DN15~DN150



 Product Picture


 Features

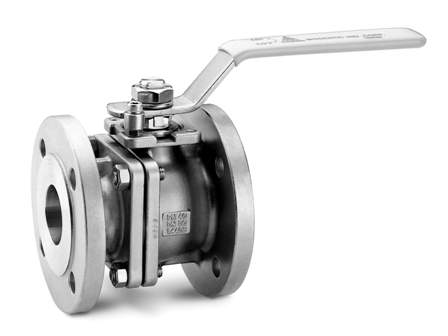

Two Pieces V-Flow Ball Valves

1. INVESTMENT CASTING COMPONENT
2. ISO 5211 MOUNTING PAD
3. BLOW-OUT-PROOF STEM DESIGN
4. IN-LINE MAINTENANCE
5. 15° V-Port Ball



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
ISO 5211 MOUNTING PAD
Recognized industry standard for mounting pad design, enabling easy assembly of actuators on to valves.
　
15° V-Port Ball
　
VF-27
STANDARD COMPLIANCE for Class 150
• ASME/ANSI B16.5
• ASME/ANSI B16.10
• ASME/ANSI B16.34
• API 598

STANDARD COMPLIANCE for PN16/40
• EN 12516-1/2
• EN 3202 F4/F5
• DIN 2501
• EN 1503-1
• EN 12266

OPTION
• 60° V Port / 45° V Port / 30° V Port / Slotted Port
• Fire safe design
　
Flanged End
END CONNECTION STANDARD
ANSI B16.5 / EN1092

VALVES LENGTH STANDARD
ANSI B16.10 /
DIN3202 F1 / F4 / F5
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
