Model
Name
Ball Valve
V-355B
Full Bore2000 PSI / 1500 PSI
1/4" ~4" DN8~DN100

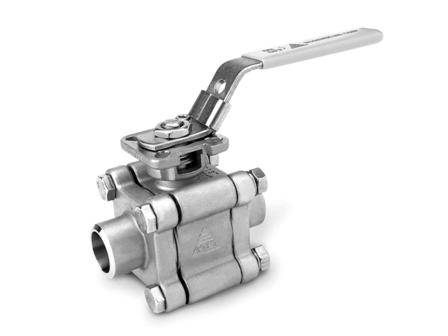

Product Picture
FeaturesISO 5211 Direct Mounted Ball Valves |
|---|
1. INVESTMENT CAST COMPONENTS |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | V-355B |
| PRODUCT TYPE | ISO 5211 Direct Mounted Ball Valves |
| OPERATION | Handle |
| PRESSURE | 2000 PSI / 1500 PSI |
| CONNECTION | Butt Weld End |
| PORT | Full Bore |
| MOUNTING Mounting Flange | ISO 5211 Direct Mounting Flange |
| BODY Material | ASTM A351 Gr.CF8M |
| CAP / BONNET Material | ASTM A351 Gr.CF8M |
| STEM Material | SS316 |
| BALL Material | ASTM A351 Gr.CF8M |
| SEAT Material | RTFE |
| CHOICE OF SEATS Material | PTFE RTFE (PTFE with 15% G.F.) Carbon filled PTFE Carbon filled PEEK PEEK PCTFE PTFE with 50% SS316 TFM |
| BODY SEAL Material | RTFE |
| THRUST WASHER Material | RTFE |
| STEM PACKING Material | RTFE |
| ISO 5211 DIRECT MOUNTING PAD |
| ISO 5211 integral mounting pad allows for direct actuator mounting. The mounting flange always follow ISO 5211 standard design and could be perfectly match with most actuators in the worldwide. Stable torque of valve always lead to the effective cost saving. |
| V-355B |
| STANDARD COMPLIANCE • EN 12516-1/2/3 • ASME B16.11 • EN1503-1 • EN 12266 TEMPERATURE RANGE • -20 to 180 °F • -4 to 356 °C OPTION API607 Fire Safe Design |
| Butt Weld End |
| END CONNECTION STANDARD ANSI B16.25 VALVES LENGTH STANDARD Manufacturing Standard / ANSI B16.10 / DIN 3202 S13 |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN8 | 112.0 | 72.9 | 62.5 | 0.75 |
| DN10 | 112.0 | 72.9 | 62.5 | 0.81 |
| DN15 | 112.0 | 72.9 | 66.1 | 0.86 |
| DN20 | 112.0 | 81.8 | 77.1 | 1.04 |
| DN25 | 136.0 | 90.5 | 83.6 | 1.36 |
| DN32 | 185.0 | 98.0 | 96.1 | 2.27 |
| DN40 | 197.9 | 114.7 | 107.2 | 3.69 |
| DN50 | 197.9 | 124.0 | 118.5 | 5.39 |
| DN65 | 267.0 | 155.0 | 158.5 | 9.58 |
| DN80 | 267.0 | 160.7 | 187.2 | 13.10 |
| DN100 | 322.0 | 216.7 | 222.0 | 22.00 |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1/4" | 4.4 | 2.9 | 2.5 | 1.7 |
| 3/8" | 4.4 | 2.9 | 2.5 | 1.8 |
| 1/2" | 4.4 | 2.9 | 2.6 | 1.9 |
| 3/4" | 4.4 | 3.2 | 3.0 | 2.3 |
| 1" | 5.4 | 3.6 | 3.3 | 3.0 |
| 1-1/4" | 7.3 | 3.9 | 3.8 | 5.0 |
| 1-1/2" | 7.8 | 4.5 | 4.2 | 8.1 |
| 2" | 7.8 | 4.9 | 4.7 | 11.9 |
| 2-1/2" | 10.5 | 6.1 | 6.2 | 21.1 |
| 3" | 10.5 | 6.3 | 7.4 | 28.9 |
| 4" | 12.7 | 8.5 | 8.7 | 48.6 |
