Model Name

Ball Valve

MD-52

Full BoreCLASS 150

1/2" ~8"    DN15~DN200

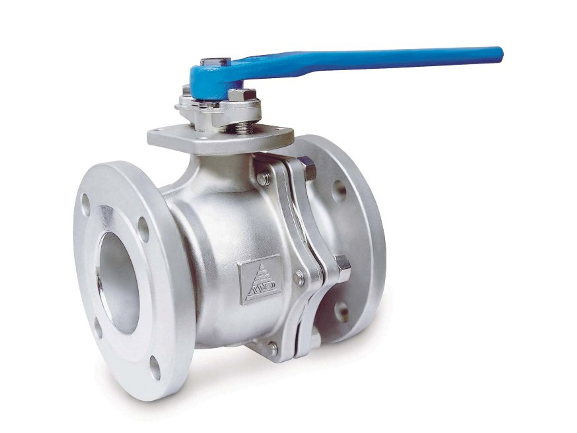

 Product Picture


 Features

Two Pieces Flanged Ball Valves

1. Blow-out proof stem
2. Anti-static design
3. ISO 5211 mounting flange
4. ANSI B16.10 Class 150
5. ANSI B16.5 Class 150 RF



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
MD-52
FACE TO FACE
ANSI B16.10 Class 150/300
DIN 3202 F4/F5

FLANGE DIMENSION
ANSI B16.5 Class 150/300, 125-250 AARH, DIN 2501 PN16/PN40 Flanged Fitting


TEMPERATURE RANGE
-4 to 365° F
-20 to 180°C


OPTION
Carbon Steel & Super Alloy upon request
　
Flanged End
END CONNECTION STANDARD
ANSI B16.5 / EN1092

VALVES LENGTH STANDARD
ANSI B16.10 /
DIN3202 F1 / F4 / F5
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
