Model Name

Ball Valve

V-Z58TC

Tube BorePN 63 / PN 40

1/2" ~4"    DN15~DN100

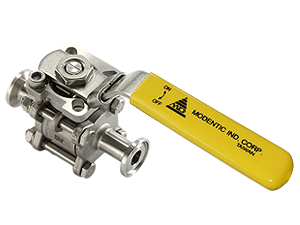

 Product Picture


 Features

Three Pieces Sanitary Ball Valves

1. T-CLAMP END
2. TUBE BORE
3. INVESTMENT CASTING BODY
4. ISO 5211 DIRECT MOUNTING
5. BLOW-OUT-PROOF STEM DESIGN
6. IN-LINE MAINTENANCE
7. FOR HYGENIC APPLICATION
8. OPTION :CAVITY FILLER SEAT



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
T-CLAMP END
Hygienic Clamp End in accordance with US dimensions.
　
V-Z58TC
STANDARD COMPLIANCE
• ASTM B16.34
• Clamp End: 3A
• EN 12266 / API598

TEMPERATURE RANGE
• -20° to 160°C

OPTION
Non cavity filler seat
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
