Model
Name
Ball Valve
MD-22J
Full BorePN 16
1-1/2"×1/2" ~8"×6" DN15 x DN40~DN150 x DN200

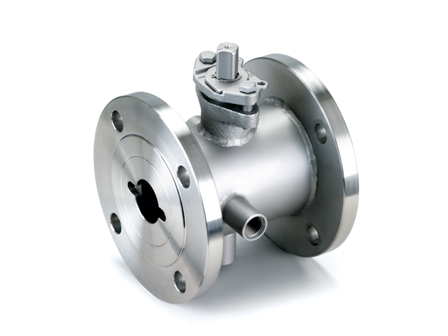

Product Picture
FeaturesTwo Ways Steam Jacket Ball Valves |
|---|
1. Blow-out proof stem |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | MD-22J |
| PRODUCT TYPE | Two Ways Steam Jacket Ball Valves |
| OPERATION | Handle |
| PRESSURE | PN 16 |
| CONNECTION | Flanged End |
| PORT | Full Bore |
| MOUNTING Mounting Flange | ISO 5211 Mounting Flange |
| BODY Material | 1.0619 / EN1503-1 |
| CAP / BONNET Material | 1.0619 / EN1503-1 |
| STEM Material | SS316 |
| BALL Material | CF8M / EN1503-2 |
| SEAT Material | RTFE / PTFE with 50% S.S. |
| CHOICE OF SEATS Material | PTFE RTFE (PTFE with 15% G.F.) Carbon filled PTFE Carbon filled PEEK PEEK PCTFE PTFE with 50% SS316 TFM |
| BODY SEAL Material | RTFE / PTFE with 50% S.S. |
| THRUST WASHER Material | RTFE / PTFE with 50% S.S. |
| STEM PACKING Material | RTFE / PTFE with 50% S.S. |
| MD-22J |
| FACE TO FACE Mfg. Std./ JIS B2002 FLANGE DIMENSION EN1092-1 / ANSI B16.5 150 / JIS 2010 PRESSURE TEST ACCORDING EN12266-1 / API598DESIGN For General Chemical and Industrial Application, Cast Bosses For Bleed / Drain Port |
| Flanged End |
| END CONNECTION STANDARD ANSI B16.5 / EN1092 VALVES LENGTH STANDARD ANSI B16.10 / DIN3202 F1 / F4 / F5 |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN15 x DN40 | - | 130.0 | 120.0 | - |
| DN20 x DN40 | - | 135.0 | 120.0 | - |
| DN25 x DN50 | - | 140.0 | 130.0 | - |
| DN40 x DN65 | - | 155.0 | 165.0 | - |
| DN50 x DN80 | - | 180.0 | 180.0 | - |
| DN65 x DN100 | - | 185.30 | 190.0 | - |
| DN80 x DN100 | - | 185.0 | 203.0 | - |
| DN80 x DN125 | - | 185.0 | 203.0 | - |
| DN100 x DN150 | - | 235.0 | 230.0 | - |
| DN150 x DN200 | - | 290.0 | 340.0 | - |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1-1/2"×1/2" | - | 5.1 | 4.7 | - |
| 1-1/2"×3/4 | - | 5.3 | 4.7 | - |
| 2"×1" | - | 5.5 | 5.1 | - |
| 2-1/2"×1-1/2" | - | 6.1 | 6.5 | - |
| 3"×2" | - | 7.1 | 7.1 | - |
| 4"×2-1/2" | - | 7.3 | 7.5 | - |
| 4"x3" | - | 7.3 | 8.0 | - |
| 5"×3" | - | 7.3 | 8.0 | - |
| 6"×4" | - | 9.3 | 9.1 | - |
| 8"×6" | - | 11.4 | 13.4 | - |
