Model Name

Ball Valve

KF-307T

Full BorePN 16

1-1/2" ~12"    DN40~DN300

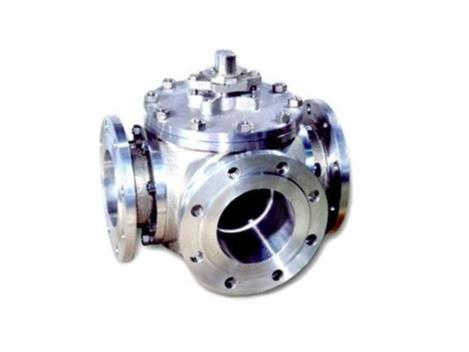

 Product Picture


 Features

Three Ways Flanged Ball Valves

1. Split body, Trunnion mounted type
2. Anti-static design
3. ISO 5211 mounting flange
4. Fact To Face : MFG Standard
5. EN 1092-1 PN 16 RF



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
KF-307T
FACE TO FACE
Mfg. Std.

FLANGE DIMENSIONS
DIN2501 / ANSI B16.5 150

TEMPERATURE RANGE
-4 to 365° F
-20 to 180°C


PRESSURE TEST ACCORDING
EN 12266-1 / API598
　
Flanged End
END CONNECTION STANDARD
ANSI B16.5 / EN1092

VALVES LENGTH STANDARD
ANSI B16.10 /
DIN3202 F1 / F4 / F5
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
